Welcome !

Established in the year 2010, we, Alpha Vacuum Technology, are one of the recognized firms engaged in manufacturing and supplying a wide range of Vacuum Pumps, Root Blowers and Compressors. The range offered by us includes Oil Sealed Rotary High Vacuum Pumps, Two Stage Vacuum Pump, Liquid Ring Vacuum Pumps, High Capacity Low Vacuum Pumps, Laboratory Vacuum Read more..


Liquid / Rotary Ring vacuum pumps

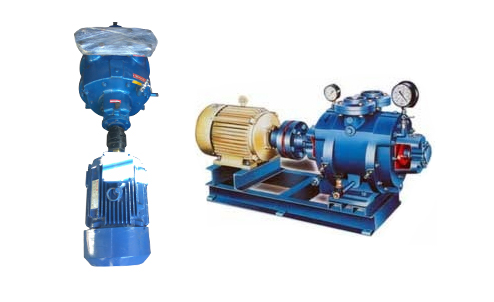

Single Stage Water Ring Vacuum Pump

single-stage-watering-vacuum-pump We manufacture water ring vacuum pump, industrial Water Ring Vacuum Pumps, vacuum pump that are appreciated for their host of qualitative features. We are the leading suppliers of Vacuum Pumps to pharmaceutical industry.

Specifications:
Model number: AV - Series
Suction capacity: 51 to 2025M3/Hr
Power consumption: 3 HP to 90HP, Maximum vacuum: 710mm of Hg (G)

Material of Construction :
» Cast lron
» Partially or Complete SS304, SS316, Bronze, Alloy 20, Hastalloy - C.
» Rubber Lined.
» Other Material also available as per customer's Requi rement.

Application :
» Moisture Extracting
» Vacuum Filtration
» Solvent Recovery
» Priming
» Vacuum Distillation
» Pneumatic Conveying
» Removing Water from Paper Pulp
» Evaporation

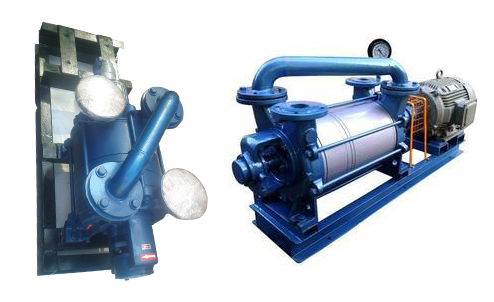

Two Stage Water Ring Vacuum Pump

Two Stage Water Ring Vacuum PumpWe hold expertise in manufacturing and supplying a high class array of Two Stage Water Ring Vacuum Pump as per the specifications detailed by patrons. The offered pumps are widely appreciated and demanded among our patrons as these have precise design, high efficiency and require low quantity of water to saves lot of energy. We make these pumps using high grade raw material while following industry set parameters.

Specifications:
Model number: AVS - Series
Suction capacity:
75 to 500M3/Hr
Power consumption: 5 HP to 25HP, Maximum vacuum: 725mm of Hg (G)

Material of Construction :
» Cast lron
» Partially or Complete SS304, SS316, Bronze, Alloy 20, Hastalloy - C.
» Rubber Lined.
» Other Material also available as per customer's Requi rement.

Application :
» Moisture Extracting
» Vacuum Filtration
» Solvent Recovery
» Priming
» Vacuum Distillation
» Pneumatic Conveying
» Removing Water from Paper Pulp
» Evaporation

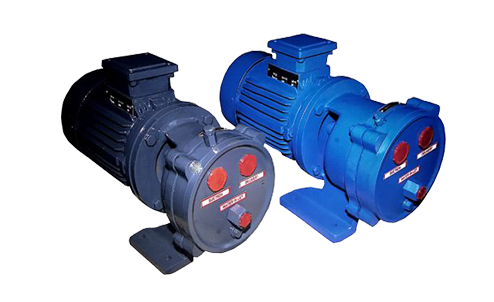

Close Coupled Water Ring Vacuum pump

Two Stage Water Ring Vacuum PumpOwing to the technologically advanced manufacturing unit, we have been able to offer a gamut of Close Coupled Liquid Ring Vacuum Pumps. This product is used most in the Pharmaceutical Machineries and PVC Manufacturing Unit. Our offered products find their extensive use in breweries and bottling plants. We are the leading suppliers of Vacuum Pumps to pharmaceutical industry.

Specifications:
Model number: CC - Series
Suction capacity: 25 to 120M 3/Hr
Power consumption: 2HP to 7.5 HP , Maximum vacuum: 710mm of Hg (G)

Material of Construction :
» Cast lron
» Partially or Complete SS304, SS316, Bronze, Alloy 20, Hastalloy - C.
» Rubber Lined.
» Other Material also available as per customer's Requi rement.

Application :
» Moisture Extracting
» Vacuum Filtration
» Solvent Recovery
» Priming
» Vacuum Distillation
» Pneumatic Conveying
» Removing Water from Paper Pulp
» Evaporation
